Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating
Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating Introduction
Grip Strut Grating is a one-of-a-kind plank grating sporting a hefty 24 foot clear span capability.
Heavy Duty Grip Strut Safety Grating products offer the advantages of regular grip strut plus the capabilities for greater loads and/or longer spans.
Channel height available:2”,2 1/2”,3”,4”,5”(walkway)
Steel gauge:9GA,10GA,11GA
Channel width:9 1/4”,13 3/4”,27 4/7”,30”,36”
Standard Length:10’,12’
Normally Used material:Aluminum,Stainless Steel,Galvanized Steel,Black HRPO,etc
Popular type:2-Diamond,3-Diamond,5-Diamond,6-Diamond,8-Diamond,etc
Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating Material
| Material | hot-rolled, cold-rolled, galvanized sheet,aluminum, stainless steel sheet and so on |
| Thickness | 2.0mm-5.0mm |
| Width | ≤1000mm |
| Length | ≤4000mm |
| Surface treatment | electro-galvanized, hot-dip galvanized, polishing and so on |
| Holes type | alligator mouth type, round convex type, tear-type, bridge-type hole |
| Processing procedure | raw materials- CNC molding- bending- welding- forming- packaging |
| Plank Widths | Channel Depths |
| 2 Diamond - 4-3/4" wide | 14 gauge Steel - 1-1/2", 2", 2-1/2" |
| 3 Diamond - 7" wide | 12 gauge Steel - 1-1/2", 2", 2-1/2", 3" |
| 4 Diamond - 9-1/2" wide | 12 gauge (.080) Aluminum - 2" |
| 5 Diamond - 11-3/4" wide | 10 gauge (.100) Aluminum - 2" |
| 8 Diamond - 18-3/4" wide | 16 gauge Stainless Steel - 2" |
| 10 Diamond - 24" wide | |
| Length: 10’-0 and 12’-0 ( custom length available up to 24’-0”) |
Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating Features and Advantages
• Openings are small enough to catch most falling tools and other dangerous objects. Open design, convenient cleaning.
• Permits quick drainage of fluids, chips, grease and mud.
• Any ice accumulation shears easily under normal foot pressure.
• Open design allows convenient access for cleaning, and is easily cleaned with brush, liquid or air spray to help minimize overall maintenance. • High load capacity, long life.
• High strength-to-weight performance is achieved through depth of section and structural design.
• Bridged struts with integral side channels form plank that can support loads with minimum transverse and longitudinal deflection.
Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating Application
Modern Architecture & Design: municipal furniture, outdoor furniture, billboards, furniture decorations,painting color perforated metal shelf systems,perforated metal products lighting and heating covers, decorative grilles, litter baskets and household equipment etc.
White Goods Components: cooling bars, draining boards, washing machine filters, kitchen equipment, microwave doors, centrifugal utensils, vapour absorber grilles, grill racks, graters and perforated pan covers etc.
Building: building cladding, perforated wall facades, dirlling metal ceilings, balustrades, perforated metal balcony panels, arcades and sunbreakers,perforated windows blinds screen, gates, fences, perforating metal screens, punching metal decorative false grates,Hexagonal Hole Pattern perforated metal safety covering, grates, perforated steel acoustic panels, ventilation, diffusers and airoutlets,perforated safety metal catwalks, cable troughs and heaters etc.

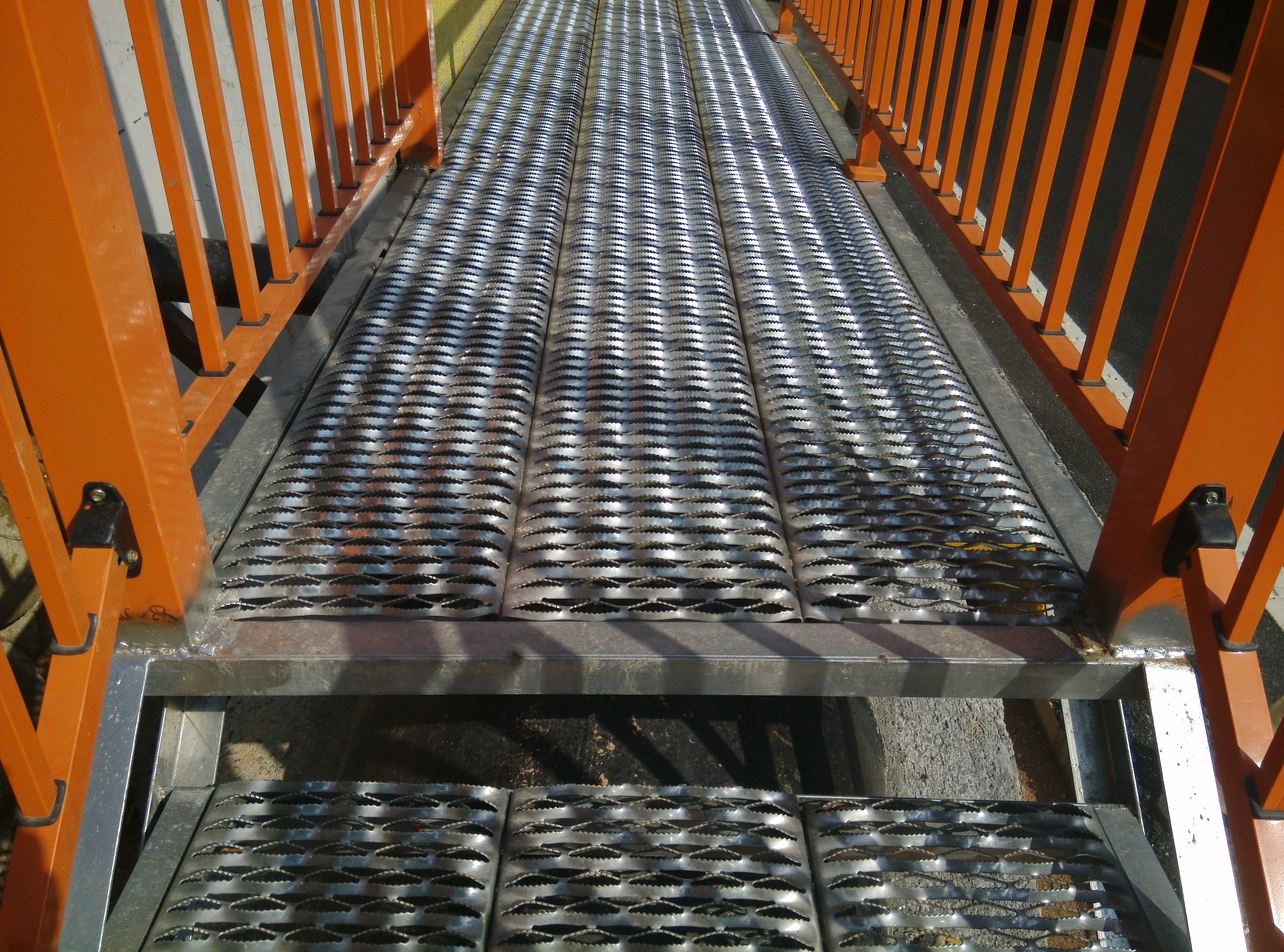

Catwalks: safety gratings serve as lightweight and economical flooring components with minimal maintenance requirements. They improve safety conditions for employees using the walkway by mitigating the risk of slipping due to the presence of ice, moisture, and oil accumulation. In large facilities, they facilitate better lighting conditions as the holes in the individual grating sections allow light to pass through relatively unobstructed.

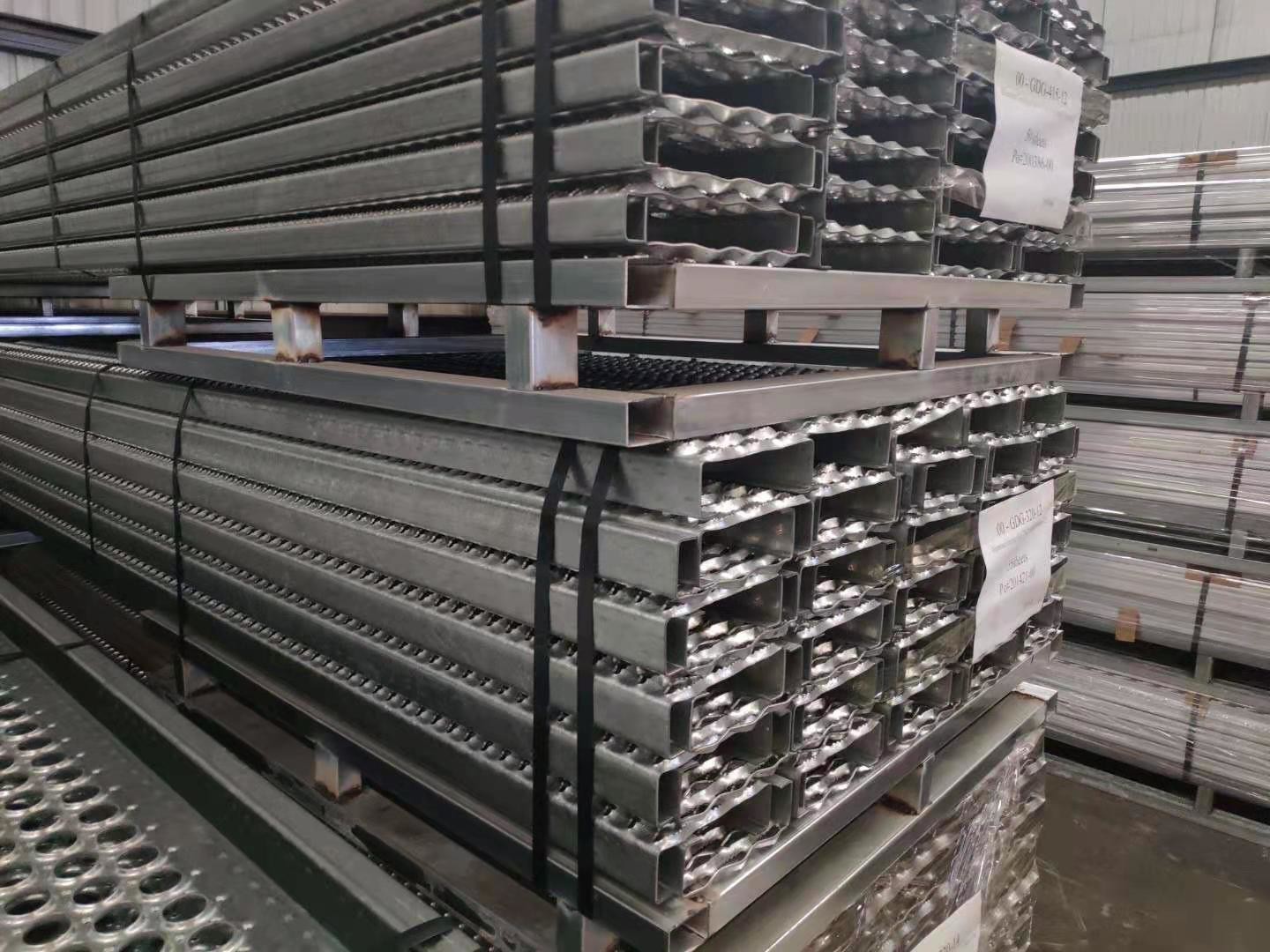

Packing
Iron pallet+satefy belts+PVC films.
It can be customized.
Product Tags:
|
|

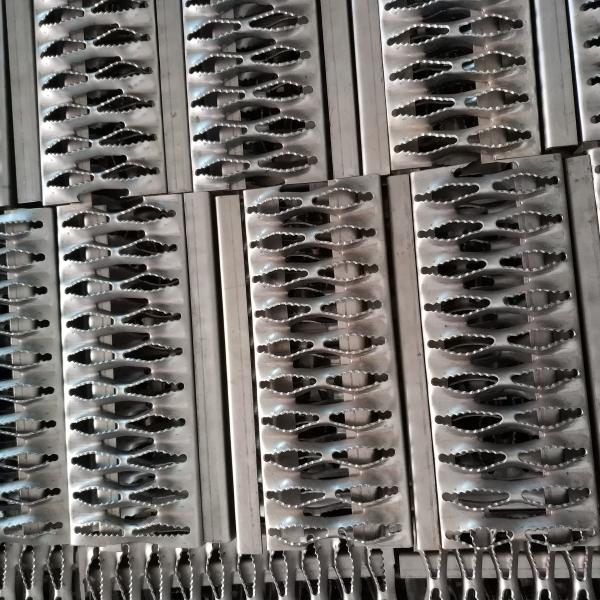

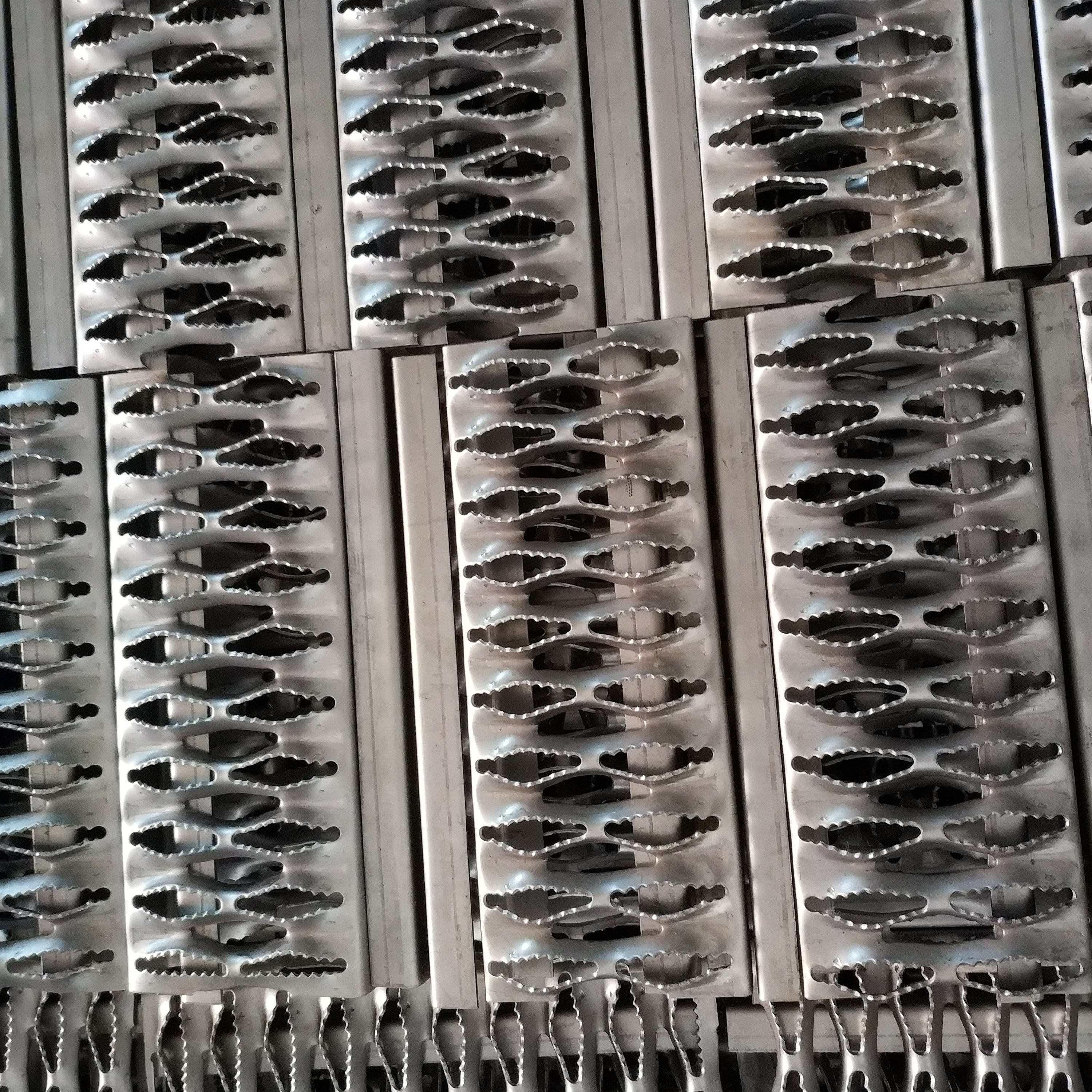

Anti Slip Diamond Plank Grating Aluminum 12 Gauge Steel Walkway Images
|
